ADS-B Systems

Discover the power of ANSART's Automatic Dependent Surveillance-Broadcast (ADS-B) Station and Squitter, a state-of-the-art system designed to provide unparalleled surveillance of aircraft and vehicles equipped with 1090 ES ADS-B transponders.

This advanced solution not only processes and distributes digital data to ATC centers but also meets the rigorous standards of Eurocae ED-129B, making it a critical component of ADS-B networks.

Our ADS-B System can serve as a vital source of 1090ES information for building WAM (Wide Area Multilateration) and MLAT (Multilateration) systems.

By deploying a 1090ES network, you can achieve comprehensive coverage in both ground and oceanic sectors, offering increased data update rates and extensive flight information.

ANSART is a leading designer and manufacturer of high-performance ADS-B hardware and applications, delivering innovative, standards-compliant solutions for airspace surveillance, airport operations, and safety-critical monitoring systems.

Our ADS-B product suite covers both hardware components and modular software systems designed for seamless integration into modern ATC, ATM, and airspace management environments.

The ADS-B product line offers a complete range of high-performance surveillance solutions, combining advanced hardware with modular software systems fully designed and developed in-house. Built for seamless integration, these systems deliver precise, real-time object position data, supporting both en-route operations and airport environments.

All essential components that form the ADS-B systems are detailed below.

Hardware components:

High-performance and compact 1090 MHz receiver designed to capture Mode-S Extended Squitter (ADS-B Out) signals from aircraft with exceptional reliability. Engineered for quick deployment and long-term stability, the station is ideal for both standalone applications and integration into larger surveillance networks.

Features:

Power over Ethernet (PoE): Simplifies installation with single-cable power and data connection
ASTERIX Category 021 Output: Ready for integration with ATC systems and surveillance networks
Up to 500 km Reception Range: Proven long-range coverage for comprehensive airspace awareness

Optional components:
Site Monitor – Monitors receiver and antenna health; sends alerts

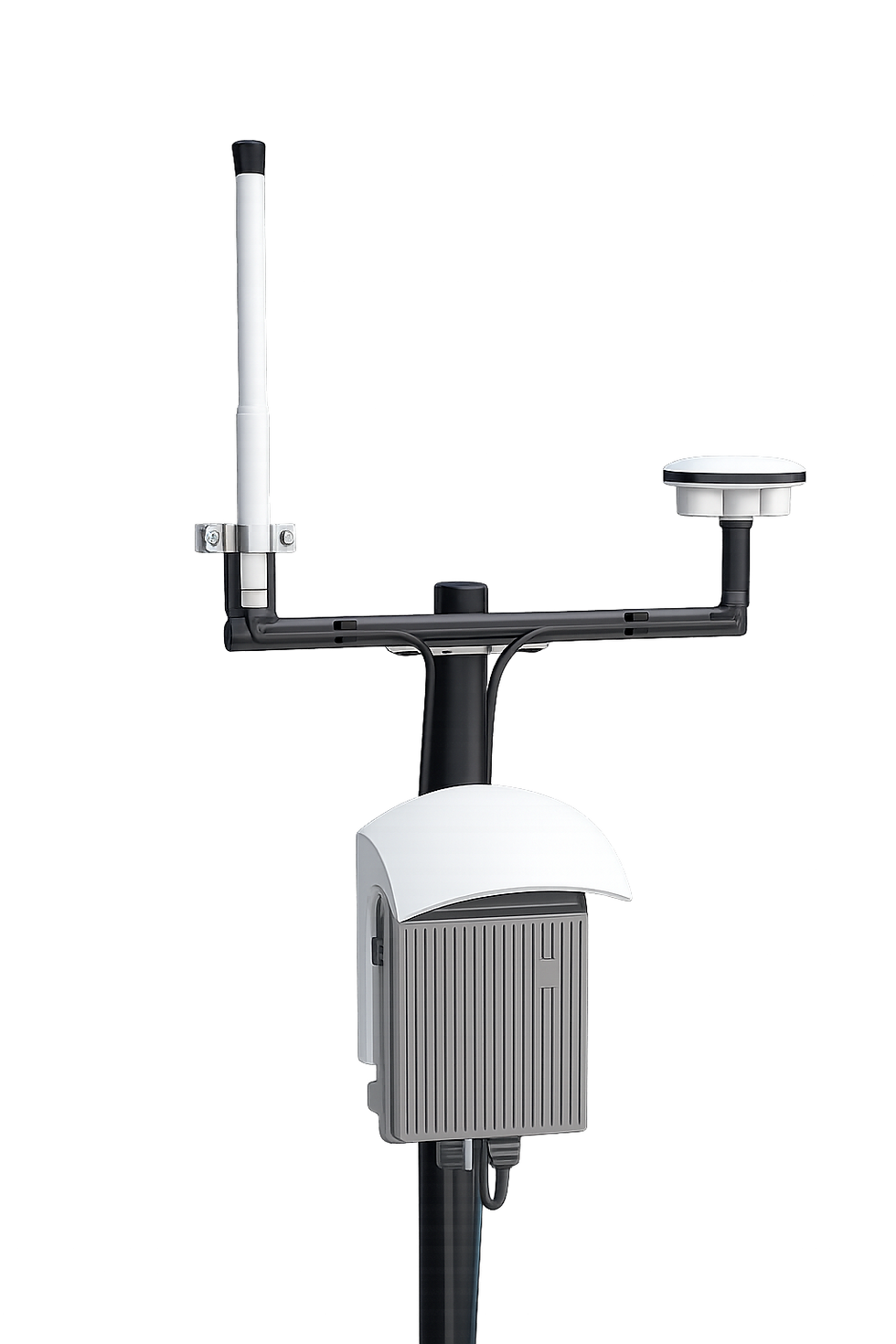

Visor – Passive sunshield to reduce internal temperature

Software components:

This component performs real-time data fusion by combining ADS-B messages from multiple receiver stations to consolidate aircraft identity, position, and status information. It functions as the central processing node in a modular system architecture, delivering a unified surveillance stream in compliance with EUROCAE ED-129 standards.

Key Functions:

Data Fusion
Aggregates and fuses input from multiple sources to generate unified, high-integrity target tracks.
Filtered Data Distribution
Generates outgoing data streams for various users, applying filtering based on configurable parameters (e.g., area, aircraft type, altitude).
Data Routing
Manages the flow of incoming and outgoing surveillance data across the network. Users can define any combination of input/output routes based on operational needs, enabling data distribution for ATC systems, monitoring tools, or external services.

ADS-B elements

ADS-B Receiver

A compact, reliable 1090 MHz receiver designed to capture Mode-S Extended Squitter (ADS-B Out) signals from aircraft. Ideal for standalone deployment or integration into wide-area surveillance networks.

ADS-B Ground Station

A complete turnkey surveillance unit, combining reception, processing, control, and network integration in a ruggedized enclosure. Suitable for airports, remote ATC installations, or border surveillance.

Receive Subsystem

Receives ADS-B Out signals at 1090 MHz, digitizes them, and transmits the digitized data to the processing core. Built for precision and low-latency data handling, with optional filtering and front-end diagnostics.

Processor Subsystem

Processes incoming data from one or multiple receivers to extract aircraft position, velocity, identity, and other parameters embedded in the ADS-B message. Supports advanced logic for validation and correlation.

Control and Monitoring Subsystem (CMS)

Centralized control panel for configuring, monitoring, and managing all system elements. Provides real-time status reports, alarms, and diagnostics of individual components and overall system health.

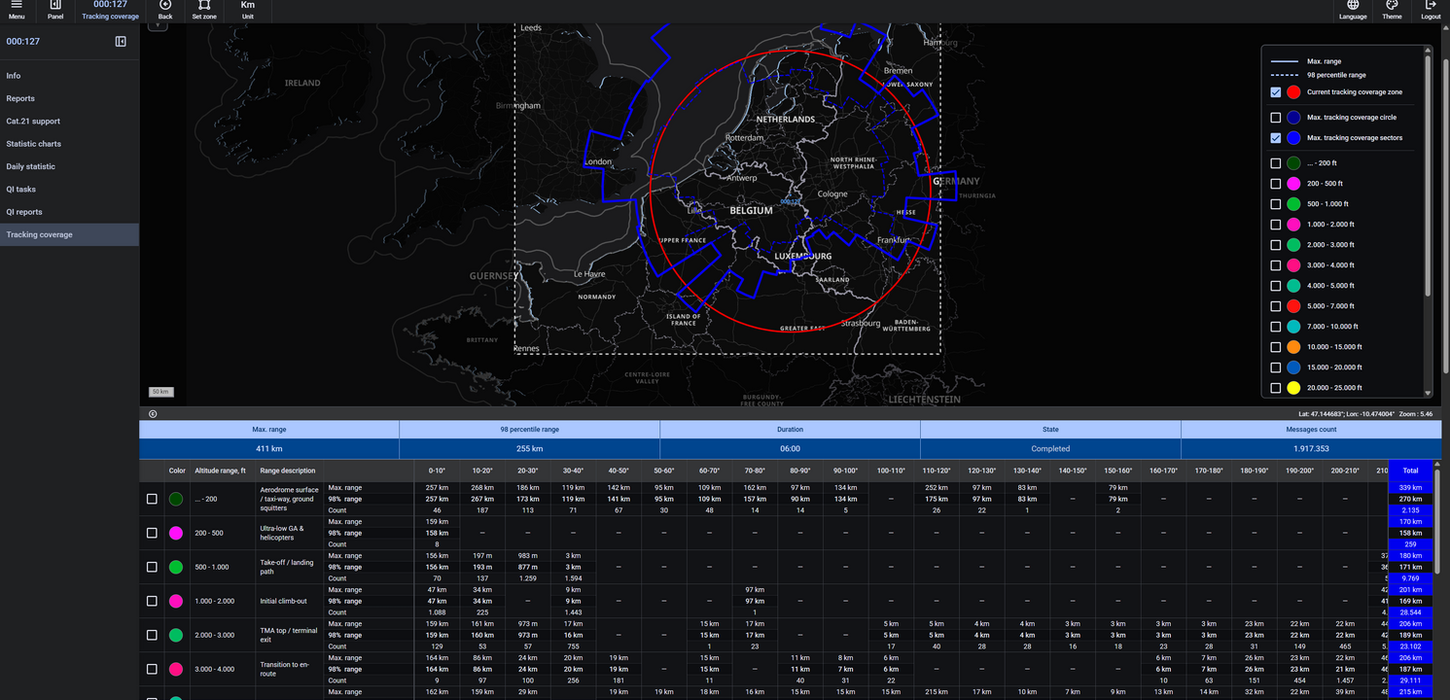

Traffic Situation Display

An intuitive and user-friendly interface that displays real-time fused surveillance data, offering clear situational awareness of both airborne and ground traffic. Ideal for ATC operations, training centers, or monitoring hubs.

Recording Subsystem

Securely captures all surveillance data, system events, and operator interactions for post-event playback, incident analysis, and regulatory compliance. Configurable storage durations and replay tools available.

ADS-B elements enable us to design and deliver customized solutions of any kind, profile, or capacity—from compact receiver stations to fully compliant ED-129B surveillance networks. Whether for small aerodromes, national ATC infrastructures, UAS monitoring zones, or military applications, our scalable components ensure high performance, interoperability, and cost-efficiency.

All essential components that form the ADS-B systems are detailed below.

Customized Solutions

ADS-B Ground Receiver Station

Capture and decode ADS-B Out messages from aircraft.

Use Cases:

ADS-B data collection
Integration into larger surveillance networks

ADS-B Ground Receiver Station with Traffic Situation Display

Display a live view of airborne traffic using locally received ADS-B signals.

Use Cases:

Heliports, airfields, and remote outposts
ATC situational awareness
Aeroclubs and general aviation airports

Central ADS-B Surveillance System

Data fusion, filter and validate ADS-B data from multiple ground stations into a unified traffic picture.

Use Cases:

Regional ATC centers
Multi-sensor surveillance coverage
Military/civil airspace monitoring
Backup to primary radar systems

Airport Ground Movement Monitoring

Track ADS-B-equipped aircraft and vehicles on the airport surface.

Use Cases:

Airport safety management
Vehicle movement control
Runway incursion prevention systems

UAS/Drone Surveillance and Management

Monitor drones and aircraft equipped with ADS-B Out for safe integration into controlled or shared airspace.

Use Cases:

Drone corridor monitoring
Urban air mobility projects
Counter-UAS situational awareness

Airspace Monitoring for Military or Border Surveillance

Passively detect and monitor ADS-B equipped aircraft approaching or violating restricted airspace.

Use Cases:

Border and coastal airspace surveillance
National defense monitoring
Early warning systems

ADS-B Data Aggregator and Forwarding Node

Aggregate and forward decoded ADS-B data to external consumers in standard formats.

Use Cases:

Commercial aviation data providers
Integration into ATC networks
Research and analytics systems

Training and Simulation System

Use live or recorded ADS-B data to support ATC or pilot training environments.

Use Cases:

ATC academy simulators
Real-time scenario-based training
Airspace behavior analysis

Fully Compliant ED-129B ADS-B Ground System

Provide a certifiable ADS-B ground surveillance system fully compliant with EUROCAE ED-129B for operational ATC use.

Use Cases:

Certified surveillance for ANSPs
Integration into national ATC systems
Redundant sensor coverage in high-density airspace

ADS-B Ground Receiver Station

Captures and decodes ADS-B Out messages

ADS-B Ground Receiver Station with/without Traffic Situation Display

Provides a complete system that integrates one or more receivers and delivers a real-time traffic display

ADS-B Based Surveillance System

Delivers real-time traffic surveillance for situational awareness in ATC centres, military and civil airspace monitoring, and as backup to primary radar systems

Airport Ground Movement Monitoring

Tracks ADS-B-equipped aircraft and vehicles on the airport surface.

UAS/Drone Surveillance and Management

Monitors drones and aircraft equipped with ADS-B Out to ensure safe integration into controlled or shared airspace

Airspace Monitoring for Military or Border Surveillance

Passively detects and monitors ADS-B equipped aircraft approaching or violating restricted airspace.

ADS-B Data Aggregator and Forwarding Node

Aggregates and forwards decoded ADS-B data to external consumers in standard formats

Training and Simulation System

Use live or recorded ADS-B data to support ATC or pilot training environments.

Fully Compliant ED-129B ADS-B Ground System

Provides a certifiable ADS-B ground surveillance system fully compliant with EUROCAE ED-129B for operational ATC use

Deployable ADS-B

Mobile Deployable ADS-B System ensures rapid deployment and reliable detection of cooperative targets within line-of-sight using ADS-B technology.

Designed for challenging operational conditions, it is ideal for contingency or special field missions. The system includes a dual-band ADS-B receiver and a rugged military-grade laptop with Traffic Situation Display software for real-time surveillance.

Customizable to meet specific mobility requirements, this kit offers a robust and versatile solution for in-the-field air traffic monitoring.

The Deployable ADS-B by ANSART is a cutting-edge solution designed for rapid deployment and reliable performance in challenging environments. This advanced ADS-B Surveillance Kit provides comprehensive traffic situation displays and is built to handle the toughest operational conditions.

With a setup time of under 5 minutes, it is ideal for contingency operations and field missions, delivering accurate detection of cooperative targets within line-of-sight.

The system offers unparalleled flexibility and reliability. It is customizable to meet specific mobility requirements, making it the best choice for dynamic and demanding scenarios where quick deployment and robust performance are essential.

Deployable ADS-B Key Components

ADS-B Receiver

Dual-band (978MHz and 1090MHz) receiver with built-in GPS.

Networkable and housed in a rugged IP67-rated enclosure.

Traffic Situation Display

Rugged, military-grade laptop equipped with Traffic Situation Display software.

Provides surveillance data processing, output data management, and displays traffic on geographic and airspace maps.

Transport Case

Custom-designed case for storing and transporting the equipment.

Any type of integrated power supply subsystem for autonomous in-field operation can be included (solar panels, battery backup, connection to the vehicle's onboard electrical system).

Experience the reliability, flexibility, and superior performance of ANSART's ADS-B solutions, designed to ensure compliance with the latest avionics regulations while enhancing the safety and efficiency of your airside operations.
